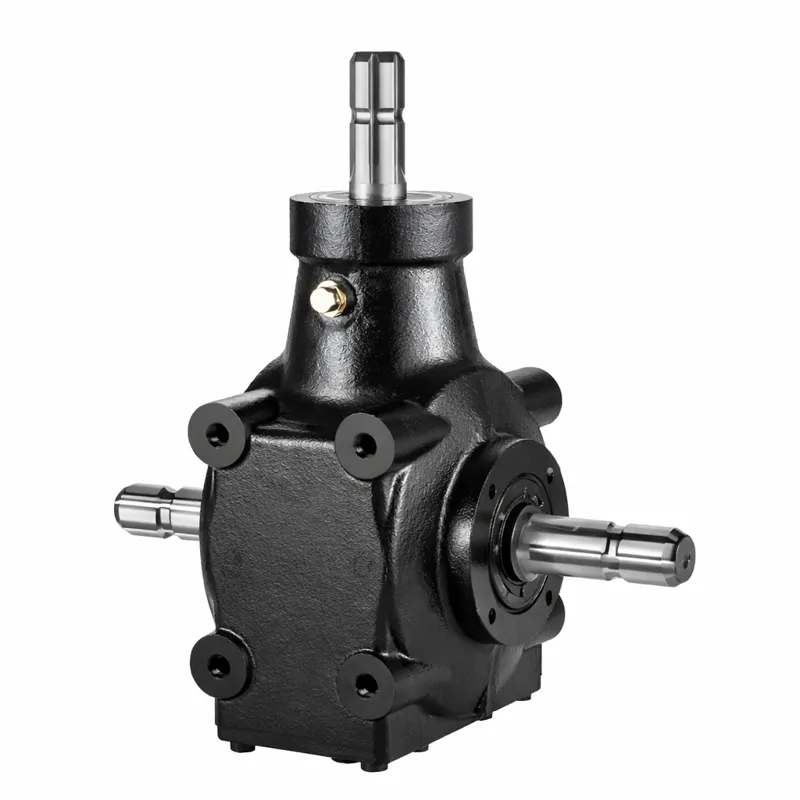

Premium Mountain Orchard Monorail Transporter Gearbox — Precision-Engineered for Orchard Transport Excellence
The agricultural gearbox is the mechanical heart of every monorail transporter. Ours is purpose-built for orchard transport — converting PTO energy into dependable, high-torque output that keeps your transport system working at peak capacity. The monorail transporter gearbox drives the rail-gripping wheels that pull the carrier up steep orchard slopes — often exceeding 45° grade. This gearbox must deliver extremely high torque at very low speed while incorporating a failsafe braking mechanism to prevent rollback.
این محصول از فولاد آلیاژی مرغوب با ماشینکاری دقیق CNC ساخته شده است Mountain Orchard Monorail Transporter gear drive در مقایسه با جایگزینهای عمومی، راندمان به مراتب بالاتری را ارائه میدهد. هر واحد کاملاً آزمایش شده، روغنکاری شده و آماده نصب فوری روی تجهیزات شما ارسال میشود.
📈 Technical Specifications — Mountain Orchard Monorail Transporter Gearbox
Below are the standard specifications for our monorail transporter gearbox. All parameters can be customized to match your specific orchard transport requirements.
| پارامتر | Standard Value | Custom Options |
|---|---|---|
| پوشش سطحی | Epoxy primer + PU topcoat | Custom RAL colours available |
| Input Shaft Spline | 6-spline (1-3/8″) / 21-spline (1-3/4″) | 20-spline, 8-spline on request |
| قطر شفت خروجی | ۵۰ میلیمتر | Match to implement coupling |
| سرعت ورودی PTO | ۵۴۰/۱۰۰۰ دور در دقیقه | Economy PTO (750 RPM) option available |
| Input Shaft Diameter | 40 mm | Custom diameters |
| نوع آببندی شفت | آببند مکانیکی صورت | Triple-lip and cassette options |
| Gear Core Hardness | HRC 36 | Tough shock-absorbing core |
| Drain Plug Type | Sight glass + drain combo | Sampling port option |
| Maximum Continuous Torque | 250 – 800 Nm | Peak torque: 150% of continuous |
| عمر طراحی یاتاقان (L10) | حداقل ۱۰۰۰۰ ساعت | Extended-life configurations |
| جنس بدنه | Adi (Austempered Ductile Iron) | Material upgrades optional |
| IP Protection Class | IP56 | Up to IP67 on request |
| ظرفیت روغن | 0.9 litres | Oversized sump available |
| جهت چرخش | استاندارد CCW (CW اختیاری) | Reversible models |
| Gear Face Width | 20 mm | Wider for high-torque |
| استاندارد طراحی | ISO 6336 | Third-party certified |
| صدور گواهینامه کیفیت | ISO 9001:2015 + ISO 14001 | Audit reports available |
| فاصله مرکز | 60 mm | Per gear ratio |
| محدوده سرعت خروجی | 197 – 2120 RPM | Depends on selected ratio |
| نوع شفت خروجی | Splined shaft | Custom output configurations |
با ما تماس بگیرید تیم مهندسی for a detailed specification sheet tailored to your monorail transporter model and orchard transport conditions.
📈 Mountain Orchard Monorail Transporter Gearbox Performance Data — Head-to-Head
The table below documents measurable differences between our premium Mountain Orchard Monorail Transporter gearbox and budget alternatives. Each advantage translates directly into reduced downtime:
| Specification | Low-Cost Alternative | Our Engineered Mountain Orchard Monorail Transporter Gearbox |
|---|---|---|
| Housing Design | Simple sand-cast iron, no FEA optimization | Precision die-cast housing, vacuum-impregnated to eliminate micro-porosity |
| عمر مفید مورد انتظار | 500-1,000 hours — frequent replacement needed | Designed for 10-year / 5,000-hour lifecycle |
| محافظت از سطح | Brush-applied enamel, inconsistent coverage | سیستم سه لایه با درجه کیفی دریایی، دارای رتبهبندی مداوم در فضای باز |
| جنس و نحوهی پرداخت چرخدنده | Grey iron gears, no heat treatment | فولاد آلیاژی Cr-Mo، کربندهی شده + سنگزنی شده، HRC 58-62، عمق پوسته 1.2 میلیمتر |
| Noise & Vibration | High-pitch whine audible from 50m away | Balanced rotating assembly, vibration below 2.5 mm/s RMS |
| Sealing System | Single-piece rubber boot, prone to cracking | Cassette-type metal-cased seal with integrated dirt rejection lip |
Farmers who switch to our Mountain Orchard Monorail Transporter gearbox report that the investment pays for itself within the first season through eliminated downtime and reduced maintenance. Quality is an investment, not an expense.
⚙ How the Mountain Orchard Monorail Transporter Gearbox Works — Mechanical Principles
Let us examine how the gearbox in a monorail transporter operates:
| Subsystem | عملکرد |
|---|---|
| PTO Input | Power enters through a precision-machined splined coupling accepting 540 RPM (1-3/8″) or 1000 RPM (1-3/4″) PTO output. The input shaft rides on self-aligning ball bearings selected specifically for the load profile of orchard transport applications. |
| Gear Reduction | Precision spur gears inside the gearbox reduce PTO speed while multiplying torque to match the rail drive’s demands. The monorail transporter gearbox drives the rail-gripping wheels that pull the carrier up steep orchard slopes — often exceeding 45° grade. This gearbox must deliver extremely high torque at very low speed while incorporating a failsafe braking mechanism to prevent rollback. The gears are manufactured from carburized alloy steel, ground to tight tolerances, and profiled for quiet, efficient power transfer. |
| Output Drive | The gearbox output shaft connects directly to the monorail transporter’s rail drive, delivering torque-multiplied power for productive orchard transport. The output coupling is machined to precise tolerances for responsive, zero-backlash power delivery. |
| Sealing & Lubrication | Every shaft penetration is protected by a cassette seal, creating multi-barrier defense against dust, moisture, and crop debris. ISO VG 220 EP provides continuous splash lubrication. The die-cast aluminum housing features integrated cooling fins for thermal management. |
✅ Mountain Orchard Monorail Transporter Gearbox — Brand-by-Brand Compatibility
مراجع OEM زیر به عنوان راهنمای نصب ارائه شدهاند. ما تولیدکنندگان مستقلی هستیم که هیچ وابستگی به برندهای ذکر شده نداریم.
ما Mountain Orchard Monorail Transporter gearbox directly replaces the factory gear drive on the following monorail transporter brands:
B-341, 283T
✅ Compatible
Series 753, 559R
✅ Compatible
Mk-III, Type 19E
✅ Compatible
Model 6934, Mk-I
✅ Compatible
Model 6258, H-706
✅ Compatible
Type 96B, 650S
✅ Compatible
Series 571, 618X
✅ Compatible
Service Components
View Parts List
📚 Quick Selection Guide — Choosing the Right Mountain Orchard Monorail Transporter Gearbox
Selecting the correct gearbox for your monorail transporter is essential for achieving optimal orchard transport performance. Follow this checklist:
| Step | What to Confirm | How to Determine | Why It Matters |
|---|---|---|---|
| 1 | نیاز به برق | Match the gearbox HP rating to your tractor’s PTO horsepower output and the monorail transporter’s demand | کمتر از مقدار واقعی منجر به گرمای بیش از حد و خرابی زودرس میشود؛ بیش از مقدار واقعی هزینه و وزن غیرضروری اضافه میکند. |
| 2 | Required rail drive Speed | Refer to your monorail transporter manufacturer’s manual for the recommended rail drive operating speed | Together with PTO speed, this defines the exact gear ratio your gearbox needs |
| 3 | الگوی پیچ نصب | Measure the bolt hole positions, centre distances, and overall envelope on your monorail transporter’s gearbox mounting flange | نصب مستقیم پیچ و مهره را بدون هیچ گونه ساخت یا صفحات آداپتور تضمین میکند |
| 4 | شناسایی گیربکس موجود | نام تجاری، شماره مدل و هرگونه شماره قطعه از پلاک نام گیربکسی که قرار است تعویض شود را ثبت کنید. | Speeds up the matching process and ensures dimensional compatibility with your transport system |
| 5 | Torque Demand | Calculate the peak torque your orchard transport application generates — including shock loads from obstacles or material variations | The gearbox must handle peak torque without activating overload protection during normal operation |
| 6 | محیط عملیاتی | Assess exposure to dust, moisture, chemicals, and temperature extremes in your typical orchard transport conditions | درجه آببندی مناسب، پوشش سطح و مشخصات مواد محفظه را تعیین میکند. |
| 7 | ساعات کاری در هر فصل | Estimate your annual operating hours for the monorail transporter to determine appropriate service life rating | عملیات با ساعات کاری بالا، مشخصات بلبرینگ و چرخدنده ممتاز را با کمترین هزینه در ساعت توجیه میکند |
💡 نکته حرفهای: If you are unsure about any parameter, photograph the existing gearbox nameplate and mounting area and send the images to our team via our contact page. We will identify the correct replacement within 24 hours.
🔧 Step-by-Step Installation — Mountain Orchard Monorail Transporter Gearbox
Follow these instructions for a successful installation of your new Mountain Orchard Monorail Transporter gearbox. Correct installation is critical for achieving maximum service life and warranty coverage.
⚠ مهم: Always consult the specific installation manual shipped with your Mountain Orchard Monorail Transporter gearbox for model-specific torque values and procedures.
🚧 Symptom-Cause-Fix Guide for Your Mountain Orchard Monorail Transporter Gearbox
Use this diagnostic reference to identify and resolve common Mountain Orchard Monorail Transporter gearbox issues in the field. Most problems can be diagnosed and addressed without removing the gearbox from the monorail transporter.
اگر با اقدامات بالا مشکل حل نشد، با تیم پشتیبانی فنی ما تماس بگیرید برای تشخیص تخصصی. ما میتوانیم عیبیابی از راه دور را ترتیب دهیم یا یک واحد جایگزین را برای شرایط بحرانی خرابی اعزام کنیم.
📝 From the Field: Australian Farmers Review the Mountain Orchard Monorail Transporter Gearbox
Our agricultural gearboxes are field-proven across every Australian state and territory. Below are documented case studies from recent Mountain Orchard Monorail Transporter gearbox installations.
📍 Case #1: Toowoomba, QLD
| مشتری: | Will Greer — dryland farming operation |
| مکان: | Toowoomba, QLD |
| اندازه مزرعه: | 5000 acres |
| کاربرد: | Mountain Orchard Monorail Transporter gearbox for monorail transporter — orchard transport |
| دلیل خرید: | Custom ratio requirement for a modified monorail transporter not served by standard catalogues |
“Our monorail transporter operates in extremely dusty conditions and we were going through gearboxes every season. This one has survived 3 seasons and is still running perfectly. The sealing is clearly superior to what we had before.”
— Will Greer, Toowoomba, QLD
Bruce Campbell — Bendigo, VIC
عملیات: organic certified farm | اندازه: 3500 acres | استفاده: Mountain Orchard Monorail Transporter gearbox for orchard transport
دلیل خرید: Replace failed OEM gearbox to restore monorail transporter for the upcoming season
“We operate in a region with heavy red soil and corrosion has been a persistent problem with gearboxes. The coating on this unit is noticeably more robust — no rust after 2 full seasons of outdoor storage.”
📍 Case #4: Mount Gambier, SA
| مشتری: | Liam Byrne — broadacre cropping operation |
| مکان: | Mount Gambier, SA |
| اندازه مزرعه: | 800 acres |
| کاربرد: | Mountain Orchard Monorail Transporter gearbox for monorail transporter — orchard transport |
| دلیل خرید: | Retrofit older model monorail transporter with improved gearbox for extended service life |
“Our monorail transporter contractor business depends on zero downtime during the season. These gearboxes have given us that reliability. In 3 years of use across 6 machines, we have had exactly zero gearbox-related breakdowns.”
— Liam Byrne, Mount Gambier, SA
Angus Reid — Darwin, NT
عملیات: specialist monorail transporter operator | اندازه: 300 acres | استفاده: Mountain Orchard Monorail Transporter gearbox for orchard transport
دلیل خرید: Fleet standardisation — transitioning all monorail transporter equipment to a single gearbox supplier
“We stress-test our equipment in ways that would void most warranties. This gearbox has handled everything we’ve thrown at it — corrosive chemical exposure — without complaint.”
❓ Mountain Orchard Monorail Transporter Gearbox FAQ — Everything You Need to Know
🔗 Related Products — Complete Your Mountain Orchard Monorail Transporter Drive System
A complete power transmission system delivers better results than any single component. Consider these additions to your Mountain Orchard Monorail Transporter setup.

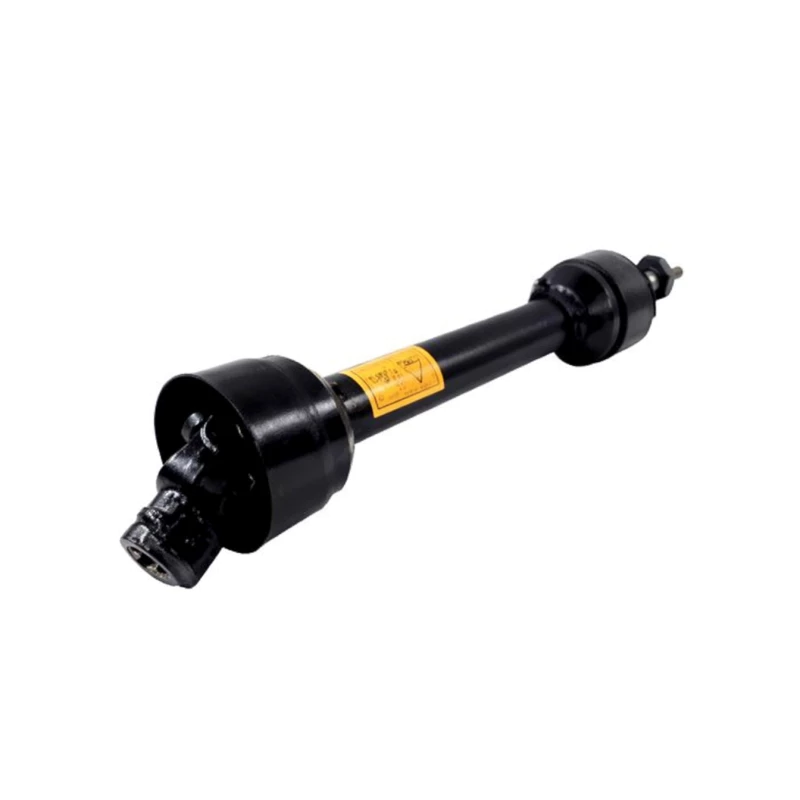

PTO Drive Shaft for Mountain Orchard Monorail Transporter
Heavy-duty PTO driveline assemblies featuring precision cross journals, integrated guard tubes, and multi-spline connections compatible with our Mountain Orchard Monorail Transporter gearbox.
Explore Our Gearbox Range
Multi-machine operators benefit from our comprehensive gearbox catalogue — standardised quality, consolidated shipping, and volume pricing across the full range.
📜 Regulatory Requirements & Regional Coverage — Mountain Orchard Monorail Transporter
Operating monorail transporter equipment in Australia requires compliance with federal and state workplace health and safety legislation. Key requirements for Mountain Orchard Monorail Transporter gearbox installations include:
Standards Compliance
| Standard | Relevance |
|---|---|
| AS 1636 — Agricultural Machinery Safety | Our gearboxes meet design requirements for agricultural machinery components, including rotating part guarding interfaces. |
| AS 4024 — Safeguarding of Machinery | Our products comply with Australian machinery safeguarding standards applicable to agricultural monorail transporter equipment. |
State-Level WHS Requirements
- Northern Territory — WHS (National Uniform Legislation) Regulations 2011: applies federal standards to orchard transport operations territory-wide.
- Western Australia — WHS (General) Regulations 2022: includes obligations for remote farm operations involving orchard transport equipment.
- New South Wales — Work Health and Safety Regulation 2017: requires documented maintenance records for all power-driven monorail transporter machinery.
Regional Coverage & Delivery Network
We deliver Mountain Orchard Monorail Transporter agricultural gearboxes to every state and territory in Australia. Our logistics network covers major farming regions including the Wheatbelt, the Ord River district, and the Great Southern, the Midlands and North West TAS, and the Riverina, the Murrumbidgee Irrigation Area, and the Liverpool Plains. Whether you operate in a metropolitan fringe area or a remote pastoral station, we ship directly to your property with full tracking and delivery confirmation.
🚨 Upgrade Your Mountain Orchard Monorail Transporter — Talk to Our Engineers
Our Capabilities
20+ industry experience. over 100,000 gearboxes produced annually. Exporting to over 50 countries.
- Full CAD/CAM design with FEA stress analysis
- In-house metallurgical lab for material verification and hardness testing
- Precision CNC gear cutting and grinding with sub-micron repeatability
- ISO 9001:2015 certified quality management with full batch traceability
Custom Orders — Your Design, Our Manufacturing
Every orchard transport operation is different. If you need a gearbox that does not exist in any catalogue, our custom manufacturing service creates it for you. Share your requirements — drawings, sketches, dimensions, or even a photo of the old unit — and we will engineer the solution.
Your trusted partner for agricultural gearbox solutions — standard and custom — across Australia and worldwide.
