Reliable Compact Rotary Cutter Gearbox for Every Field: EP-9.259
When your lawn mower gearbox needs to perform without question, the EP-9.259 delivers. Rated for 30 HP at 540 rpm, its carburized spiral bevel gears and environmentally sealed housing handle everything from fine pasture topping to aggressive brush clearing.
📈 EP-9.259 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | EP-9.259 |
| Gearbox Type | Compact Rotary Cutter Gearbox |
| Gear Ratio(s) | 1.46:1 |
| Teeth Configuration | 19/13 |
| Gear Module | 5.0 |
| Rated Power | 30 HP |
| Input Speed | 540 rpm |
| Input/Output Shaft | 1 3/8 Z6, Optic axis |
| Net Weight | 14 Kg |
| Gear Material | 20CrMnTi Alloy Steel, Carburized & Hardened HRC 58-62 |
| Housing Material | Grey Cast Iron (HT200/HT250) |
| Seal Protection | Multi-Lip NBR/FKM Oil Seals, IP65+ Rated |
| Lubrication | SAE 80W-90 or 85W-140 EP Gear Oil |
| Surface Treatment | E-Coat Primer + Polyester Powder Coat, Red Finish |
⭐ Key Features & Engineering Advantages
🌡
Custom-Angle Bevel Tooth Geometry
Non-standard bevel angles CNC-cut for unique shaft orientations, enabling implement designs that standard 90° gearboxes cannot accommodate.
🛠
Application-Tuned Non-Standard Ratio
Gear ratio calculated specifically for target output RPM and torque, matched to the precise blade speed requirements of the intended mowing/mulching implement.
🔬
Tip-Relief Quiet Gear Profile
Tooth profile modifications (tip relief + lead crowning) reduce gear-mesh noise by 6 dB versus standard straight bevel designs, improving operator comfort.
⚖
Abrasion-Resistant Cast Housing
Extra-thick grey iron walls with hardened mounting faces, resisting the abrasive wear caused by constant soil contact during deep tillage operations.
🚀
Bolt-On Precision Flange Mount
Machined flange with dowel pin locations for accurate, repeatable tiller frame alignment, eliminating vibration-inducing misalignment during extended tillage runs.
💪
Gear-Ground Tooth Flanks, Ra 0.5 μm
Post-heat-treatment gear grinding achieves consistent surface finish and AGMA Class 9 geometry, reducing running-in wear and extending time to first service.
🔧 Equipment Compatibility & Cross-Reference
🔄 Cross-Reference Compatibility for EP-9.259
The EP-9.259 is engineered as a direct replacement or upgrade for gearboxes fitted to equipment from leading manufacturers including:
Mahindra • Pöttinger • TAFE • McCormick • Mitsubishi • Zoomlion • Case IH • Land Pride
Disclaimer: Brand names above are referenced solely for compatibility identification. Ever-power Australia Mower Gearbox Co.,Ltd. is not affiliated with, endorsed by, or authorized by any listed manufacturer. All trademarks belong to their respective owners.
📚 Gearbox Selection Guide
A well-matched gearbox delivers years of trouble-free service. Follow this guide to confirm the EP-9.259 is the optimal choice for your needs:

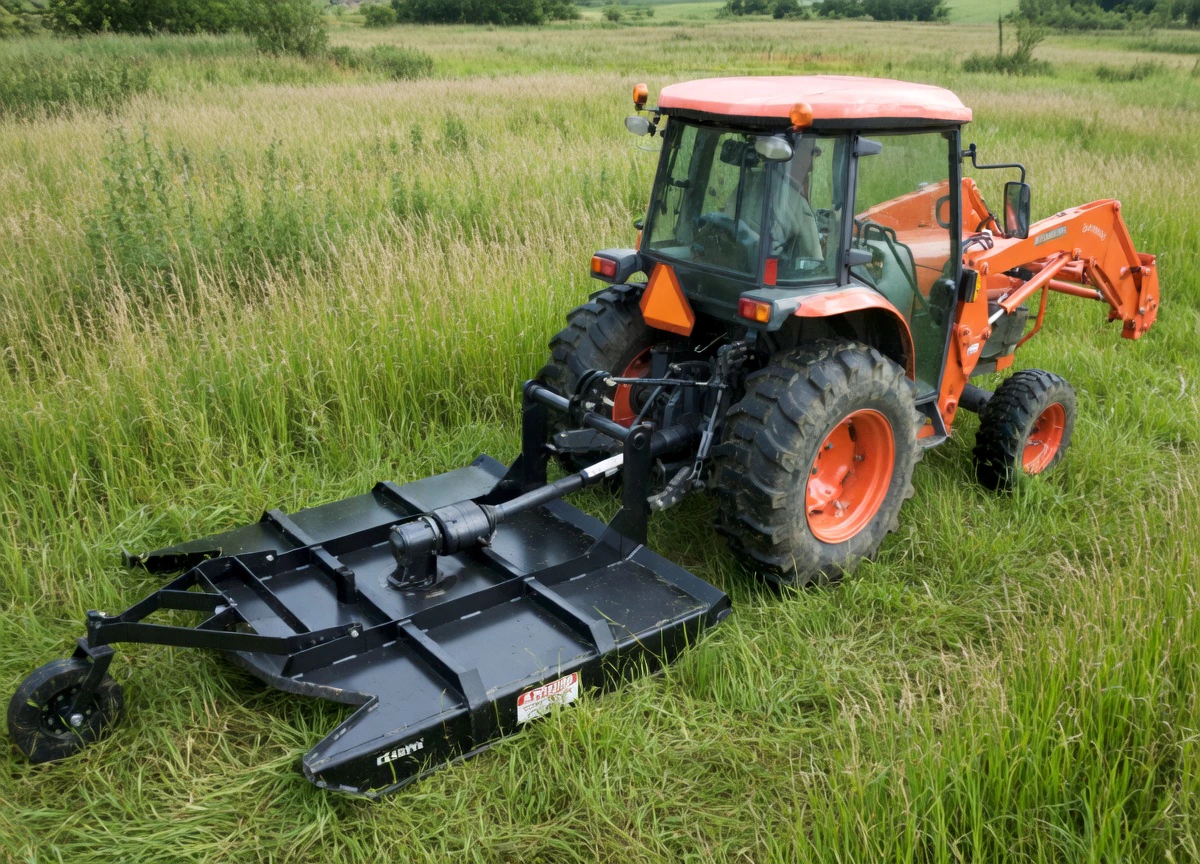

🌾 Typical Application Scenarios
🌾 Seed crop header trail and paddock boundary mowing
🚘 Rotary cutting of improved pasture on dairy and beef farms
🌱 Solar farm ground cover and weed management
⛰ Firebreak establishment and maintenance mowing
🌳 Disc mowing of grass and legume hay crops
🛠 Installation & Setup Guide
- Clean the implement mounting surface thoroughly, removing all rust, old gasket material, paint flakes, and debris that could prevent flush contact with the gearbox flange.
- Position the gearbox onto the mounting studs or bolt holes, verifying the input shaft faces the tractor PTO and the output shaft aligns with the blade hub or rotor.
- Ensure the PTO shaft has at least 50% spline overlap in all operating positions. Inadequate overlap causes rapid spline wear and potential shaft separation.
- Record the installation date, tractor hour meter reading, and gearbox serial number in your maintenance log for warranty and service interval tracking.
- If replacing an existing unit, drain the old oil completely, remove mounting fasteners, and carefully lower the old gearbox. Photograph the orientation and note any shim washers used.
- Insert all mounting bolts finger-tight first, then torque to specification in a cross (star) pattern to ensure even clamping. Typical torque: 80-120 Nm depending on bolt size.
- With the implement raised and blades clear of the ground, engage the PTO at low idle speed. Listen for any unusual noise and observe for vibration or oil leaks.
❓ Frequently Asked Questions
⭐ Customer Reviews & Field Reports
John M.
★★★★★
📍 Queensland, Australia
Running it on a 25-35 HP tractor through rocky paddocks. Handles rocks and rough ground without complaint. Very impressed with the build.
Luca V.
★★★★★
📍 Tuscany, Italy
Purchased two units for our operation. Consistent quality between both units, which tells me their factory QC is solid. Will buy again.
Rajesh P.
★★★★★
📍 Punjab, India
Replaced a failed OEM unit on a 15-year-old mower. This new gearbox is actually smoother and quieter than the original ever was.
Thabo N.
★★★★☆
📍 Free State, South Africa
Best aftermarket unit I have used in 20+ years of farming. Bolt holes aligned first try. Oil sight glass is a thoughtful touch.
Ian F.
★★★★☆
📍 Otago, New Zealand
Precision manufacturing is evident when you look at the gear teeth. Mesh noise is minimal. Very satisfied with this purchase.
⚖ EP-9.259 vs. Low-Cost Alternatives
| Feature | EP-9.259 (Ever-power) | Generic / Low-Cost Alternative |
|---|---|---|
| Fastener Protection | ✔ Zinc-Flake Coated Grade 10.9 Bolts | ✘ Plain Steel Grade 8.8, Corrodes and Seizes |
| Oil Level Check | ✔ Clear Sight Glass + Dipstick Standard | ✘ No Sight Glass, Must Remove Fill Plug |
| After-Sales Support | ✔ Dedicated Technical Team, Video Call Support | ✘ Email Only, 1-2 Week Response Time |
| Engineering Support | ✔ Free Application Engineering & Cross-Reference | ✘ No Technical Support Provided |
| Oil Seals | ✔ Double-Lip NBR/FKM, IP65 Rated | ✘ Single-Lip NBR, No Dust Lip |
| Dimensional Tolerance | ✔ ISO IT6-IT7, CNC Machined Throughout | ✘ ISO IT9-IT10, Partially Hand-Finished |
| Documentation | ✔ Full Drawings, Cross-Reference, Install Guide | ✘ Basic Single-Page Spec Sheet Only |
🔄 Related Products & Accessories
Browse our complete range of agricultural transmission components including PTO shafts, gears, pulleys, chains, and sprockets — all engineered to integrate seamlessly with EP-9.259 gearboxes.
🏆 Certifications & Quality Standards
Every EP-9.259 carries the weight of our ISO 9001:2015 quality system and 20+ years of continuous improvement. We use statistical process control (SPC) on critical gear dimensions, maintain measurement system analysis (MSA) per AIAG standards, and archive all inspection data for a minimum of 10 years. This discipline is why our field failure rate remains below 0.3%.
🏭 Why Choose Ever-power Australia Mower Gearbox Co.,Ltd.?
We built Ever-power Australia Mower Gearbox Co.,Ltd. on the principle that no farmer should have to choose between quality and affordability. Every gearbox leaving our factory undergoes 100% dimensional inspection on Zeiss CMMs, gear geometry verification on Gleason analyzers, hydrostatic leak testing, and no-load run-in testing. This multi-stage quality gate is why Ever-power Australia Mower Gearbox Co.,Ltd. gearboxes are trusted by agricultural dealers in 38+ countries — and why our repeat order rate exceeds 85% year after year.
📞 Get Your EP-9.259 Quote Today
Your mowing equipment deserves a gearbox engineered for the long haul. Request your EP-9.259 quote today and join thousands of satisfied operators who made the switch to Ever-power Australia Mower Gearbox Co.,Ltd..
