Description
EP-RC31 — Professional-Grade Rotary Cutter Gearbox for Agricultural Mowing
The EP-RC31 is a purpose-engineered lawn mower gearbox delivering reliable right-angle power transmission at 30 HP with 540 rpm PTO input. Its spiral bevel gears and sealed construction ensure consistent performance across thousands of operating hours in demanding field conditions.
📈 EP-RC31 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | EP-RC31 |
| Gearbox Type | Rotary Cutter Gearbox |
| Gear Ratio(s) | 1:1.46 / 1:1.69 / 1:1.93 / 1:2.3 |
| Teeth Configuration | 22/15, 22/13, 29/15, 28/12 |
| Gear Module | 5.08 / 5.0 / 4.0 / 4.0 |
| Rated Power | 30 HP |
| Input Speed | 540 rpm |
| Input/Output Shaft | 3/8 Z6 / Optic axis / Taper spline |
| Net Weight | 21.5 Kg |
| Gear Material | 20CrMnTi Alloy Steel, Carburized & Hardened HRC 58-62 |
| Housing Material | Grey Cast Iron (HT200/HT250) |
| Seal Protection | Multi-Lip NBR/FKM Oil Seals, IP65+ Rated |
| Lubrication | SAE 80W-90 or 85W-140 EP Gear Oil |
| Surface Treatment | E-Coat Primer + Polyester Powder Coat, Red Finish |
⭐ Key Features & Engineering Advantages
⚙
CNC-Machined Spiral Bevel Gears
Gears cut from 20CrMnTi alloy on Gleason CNC generators, case-carburized to HRC 58-62 with 1.2 mm case depth for 10+ million cycle fatigue life under rated torque.
⚗
96-98% Power Transmission Efficiency
Precision-lapped tooth contact patterns reduce mesh friction losses to under 4%, delivering near-full PTO horsepower to the blade assembly with minimal heat build-up.
🔒
Pre-Filled EP90 Gear Lubricant
Ships factory-filled with extreme-pressure SAE 90 gear oil and includes a clear sight glass for instant oil-level verification before each operating session.
⚡
QT450-10 Ductile Iron Shell
Nodular graphite iron housing absorbs 40% more impact energy than grey iron, protecting internal components when the mower strikes concealed rocks or fence posts.
🔄
Dual 540/1000 RPM Configurability
Input shaft and gear set available in both 540 RPM and 1000 RPM PTO configurations, covering the full range of modern tractor PTO standards from a single product family.
🔨
Rapid-Release Blade Flange
Quick-disconnect output flange with self-centering pilot reduces blade swap time to under 10 minutes, cutting maintenance downtime by 60% versus bolted hubs.
🔧 Equipment Compatibility & Cross-Reference
🔄 Cross-Reference Compatibility for EP-RC31
The EP-RC31 is engineered as a direct replacement or upgrade for gearboxes fitted to equipment from leading manufacturers including:
John Deere • AGCO • Rhino • LS Tractor • Fella • Sonalika • Branson • Dongfeng
Disclaimer: Brand names above are referenced solely for compatibility identification. Ever-power Australia Mower Gearbox Co.,Ltd. is not affiliated with, endorsed by, or authorized by any listed manufacturer. All trademarks belong to their respective owners.
📚 Gearbox Selection Guide
Choosing the right mower gearbox is critical for implement performance and longevity. Use the following criteria when evaluating the EP-RC31:
🌾 Typical Application Scenarios
🌾 Rotary cutting of improved pasture on dairy and beef farms
🚘 Solar farm ground cover and weed management
🌱 Firebreak establishment and maintenance mowing
⛰ Disc mowing of grass and legume hay crops
🌳 Airfield perimeter and runway strip grass management
🛠 Installation & Setup Guide
- Clean the implement mounting surface thoroughly, removing all rust, old gasket material, paint flakes, and debris that could prevent flush contact with the gearbox flange.
- Position the gearbox onto the mounting studs or bolt holes, verifying the input shaft faces the tractor PTO and the output shaft aligns with the blade hub or rotor.
- Ensure the PTO shaft has at least 50% spline overlap in all operating positions. Inadequate overlap causes rapid spline wear and potential shaft separation.
- Record the installation date, tractor hour meter reading, and gearbox serial number in your maintenance log for warranty and service interval tracking.
- If replacing an existing unit, drain the old oil completely, remove mounting fasteners, and carefully lower the old gearbox. Photograph the orientation and note any shim washers used.
- Insert all mounting bolts finger-tight first, then torque to specification in a cross (star) pattern to ensure even clamping. Typical torque: 80-120 Nm depending on bolt size.
- With the implement raised and blades clear of the ground, engage the PTO at low idle speed. Listen for any unusual noise and observe for vibration or oil leaks.
❓ Frequently Asked Questions
⭐ Customer Reviews & Field Reports
John M.
★★★★★
📍 Queensland, Australia
Fitted to my rotary cutter last season. Over 400 hours and counting — zero leaks, minimal noise. Excellent value for a professional-grade unit.
Fernando M.
★★★★★
📍 Jalisco, Mexico
Running it on a 40-50 HP tractor through rocky paddocks. Handles rocks and rough ground without complaint. Very impressed with the build.
Piotr N.
★★★★★
📍 Lublin, Poland
Purchased two units for our operation. Consistent quality between both units, which tells me their factory QC is solid. Will buy again.
Luca V.
★★★★☆
📍 Tuscany, Italy
Replaced a failed OEM unit on a 15-year-old mower. This new gearbox is actually smoother and quieter than the original ever was.
Rajesh P.
★★★★☆
📍 Punjab, India
Best aftermarket unit I have used in 20+ years of farming. Bolt holes aligned first try. Oil sight glass is a thoughtful touch.
⚖ EP-RC31 vs. Low-Cost Alternatives
| Feature | EP-RC31 (Ever-power) | Generic / Low-Cost Alternative |
|---|---|---|
| Gear Material | ✔ 20CrMnTi Forged Alloy Steel, Carburized HRC 58-62 | ✘ 45# Carbon Steel, Surface Hardened HRC 40-45 |
| Warranty | ✔ 12-Month Full Manufacturer Warranty | ✘ 3-6 Month Limited Warranty |
| Seal Longevity | ✔ FKM/Viton Seals, 2000+ Hour Service Life | ✘ NBR Seals, 500-800 Hours Before Leaking |
| Breather | ✔ Labyrinth Stainless Steel Breather Valve | ✘ Simple Open Vent Hole, Allows Water Entry |
| Gear Forging Method | ✔ Closed-Die Forged, Grain-Flow Aligned | ✘ Open-Die Forged or Cast, Weak Grain Structure |
| Cooling Design | ✔ Machined External Cooling Fins, 35% More Area | ✘ Smooth Housing, Poor Heat Dissipation |
| Output Flange | ✔ Forged Steel, Heat-Treated HRC 28-32 | ✘ Cast Iron, Untreated, Prone to Cracking |
🔄 Related Products & Accessories

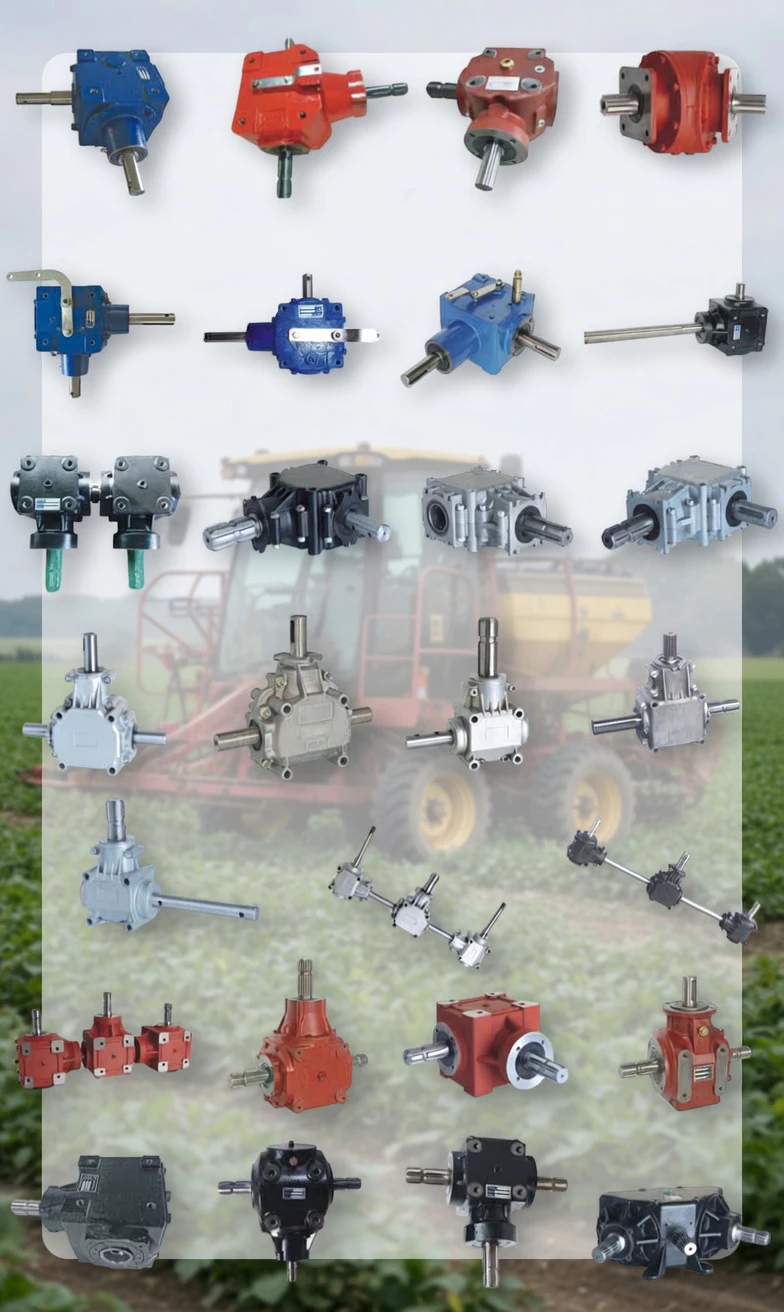

Browse our complete range of agricultural transmission components including PTO shafts, gears, pulleys, chains, and sprockets — all engineered to integrate seamlessly with EP-RC31 gearboxes.
🏆 Certifications & Quality Standards
Our manufacturing facility holds ISO 9001:2015 quality management and ISO 14001:2015 environmental management certifications. All gear steel is supplied with EN 10204 Type 3.1 mill test certificates. Heat treatment processes are monitored per CQI-9 (Special Process: Heat Treat System Assessment). Every EP-RC31 undergoes 100% dimensional inspection and functional testing before shipment.
🏭 Why Choose Ever-power Australia Mower Gearbox Co.,Ltd.?
At Ever-power Australia Mower Gearbox Co.,Ltd., we have invested over two decades building one of the most advanced agricultural gearbox production facilities in the Asia-Pacific region. Our 12000 m² campus integrates in-house forging, CNC gear cutting, automated heat treatment, precision grinding, and assembly under one roof — giving us end-to-end quality control that outsourced manufacturers simply cannot match. We produce 45000 gearbox units annually, serving OEM partners and distributors across 35+ countries on six continents, with particular strength in the Australian, North American, and European markets.
📞 Get Your EP-RC31 Quote Today
Ready to boost your mowing productivity with the EP-RC31? Our application engineers can match this gearbox to your specific tractor and implement — get a tailored recommendation today.
