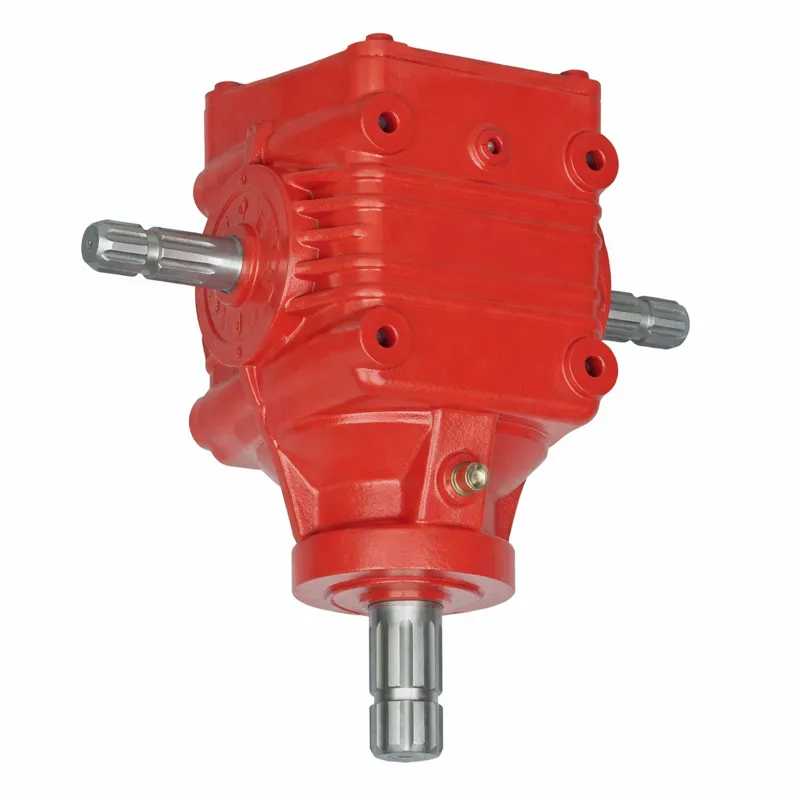

Next-Generation Large Square Baler Gearbox — Redefining Hay Baling Efficiency
Your large square baler depends on a gearbox that can translate raw PTO power into productive hay baling force — reliably, efficiently, and without unexpected failure. That is exactly what our Large Square Baler agricultural gearbox delivers. The square baler gearbox converts continuous PTO rotation into the reciprocating plunger stroke that compresses hay into dense rectangular bales. This is a demanding application — the crank mechanism generates extreme peak loads at each compression stroke.
We engineer each gearbox specifically for the mechanical profile of hay baling. The gear geometry, bearing selection, and housing design are all optimized for the load patterns, duty cycles, and environmental exposures unique to large square baler operations across Australian farming conditions.
🛠 Large Square Baler Gearbox Specifications at a Glance
Key performance data for our agricultural gearbox for large square baler. Need different specs? We manufacture to your exact requirements.
Бізбен хабарласыңыз инженерлік топ for a detailed specification sheet tailored to your large square baler model and hay baling conditions.
💰 Total Cost of Ownership — Large Square Baler Gearbox Analysis
We believe in transparency. These are the specific, verifiable differences between our Large Square Baler gear drive and low-cost alternatives:
| Attribute | Standard Replacement | Our Premium-Grade Large Square Baler Gearbox |
|---|---|---|
| Жұмыс тиімділігі | 82-87% — high fuel consumption penalty | 97%+ — superfinished gears reduce mesh friction to near-theoretical minimum |
| Беріліс материалы және өңдеу | Штампталған болат берілістер, минималды өңдеу | Cr-Mo alloy steel, carburized + ground, HRC 58-62, 1.2mm case depth |
| Қосалқы бөлшектер | Parts vary batch to batch | Online parts catalogue, next-day dispatch |
| Bearing Specification | Generic deep-groove bearings, basic grease pack | Double-row tapered rollers, sealed-for-life lubrication option |
| Тұрғын үй дизайны | Simple sand-cast iron, no FEA optimization | Сфероидты графит темір (SG700), CNC өңделген мойынтірек тесіктері, біріктірілген салқындатқыш қанаттары |
| Тығыздау жүйесі | Single-piece rubber boot, prone to cracking | Triple-barrier seal: spring-loaded lip + V-ring + external slinger |
Every dollar spent on a premium gearbox returns multiple dollars in avoided repairs and preserved crop value. Request an ROI analysis for your operation.
🛠 Working Principle — Large Square Baler Agricultural Gearbox
Understanding the internal mechanics of your large square baler gearbox empowers you to optimize performance and spot early wear signs.
Stage 1: PTO Power Reception
Your tractor’s PTO shaft engages with the gearbox through a hardened splined input shaft. The interface transmits torque while allowing minor angular misalignment. Inside, self-aligning ball bearings support the input shaft and manage the combined loading of transmitted torque and driveline forces.
Stage 2: Gear Reduction & Torque Conversion
The heart of the gearbox is a matched set of helical gears, forged from Cr-Mo alloy steel. These gears reduce rotational speed from PTO RPM to the plunger crank drive’s working speed while proportionally multiplying torque. The square baler gearbox converts continuous PTO rotation into the reciprocating plunger stroke that compresses hay into dense rectangular bales. This is a demanding application — the crank mechanism generates extreme peak loads at each compression stroke. The gear mesh geometry is computer-optimized for even load distribution.
Stage 3: Output to the Plunger Crank Drive
The gearbox output shaft connects directly to the large square baler’s plunger crank drive, delivering torque-multiplied power for productive hay baling. The output coupling is machined to precise tolerances for responsive, zero-backlash power delivery.
Stage 4: Lubrication & Thermal Control
Every shaft penetration is protected by a spring-loaded lip seal, creating multi-barrier defense against dust, moisture, and crop debris. synthetic PAO 75W-90 provides continuous splash lubrication. The ADI (Austempered Ductile Iron) housing features integrated cooling fins for thermal management.
🔁 Large Square Baler Gearbox Cross-Reference Chart
Бренд сілтемелері тек тұтынушыларға үйлесімді ауыстырылатын беріліс қораптарын анықтауға көмектесу үшін берілген. Барлық сауда белгілері тиісті иелеріне тиесілі.
| OEM | Cross-Referenced Models | Verified |
|---|---|---|
| Kubota | Model 4284, Mk-V, Series 641 | ✅ |
| LS тракторы | Type 50K, Mk-V, Series 308 | ✅ |
| Valtra | G6.2, Type 98G, Series 981 | ✅ |
| Zetor | Series 792, G5.2, Mk-II | ✅ |
| Challenger | 819T, Type 24A, Model 8370 | ✅ |
Компоненттің қолжетімділігі
Әрбір ішкі компонент жеке-жеке қолжетімді: мойынтіректер, тығыздағыштар, берілістер, біліктер, фурнитура. Біз жөнелтуге дайын қорды сақтаймыз, әдеттегідей 48 сағат ішінде жөнелтеміз. Бөлшектерді осы жерден тапсырыс беріңіз.
🔎 Buyer’s Checklist — Large Square Baler Gearbox Selection Made Simple
Getting the right gearbox for your baling equipment requires confirming these seven parameters before you order. Our engineering team can help you through each step if needed.
1. Mounting Bolt Pattern
Measure the bolt hole positions, centre distances, and overall envelope on your large square baler’s gearbox mounting flange.
Importance: Ensures direct bolt-on installation without any fabrication or adapter plates.
2. Power Requirement
Match the gearbox HP rating to your tractor’s PTO horsepower output and the large square baler’s demand.
Importance: Under-rating leads to overheating and premature failure; over-rating adds unnecessary cost and weight.
3. Output Shaft Type
Identify the coupling type on your large square baler — keyed, splined, flanged, or hollow bore.
Importance: Mismatched outputs require costly adapter couplings and introduce potential failure points.
4. Working Hours per Season
Estimate your annual operating hours for the large square baler to determine appropriate service life rating.
Importance: High-hour operations justify premium bearing and gear specifications for lowest cost per hour.
5. Operating Environment
Assess exposure to dust, moisture, chemicals, and temperature extremes in your typical hay baling conditions.
Importance: Determines the appropriate seal grade, surface coating, and housing material specification.
6. Tractor PTO Speed
Check your tractor’s PTO specification — standard is 540 RPM or 1000 RPM.
Importance: Determines the input shaft spline size and the baseline for ratio calculation.
7. Rotation Direction
Determine whether the plunger crank drive on your large square baler requires clockwise or counter-clockwise output when viewed from the drive end.
Importance: Incorrect rotation direction will damage the implement or produce no useful work.
💡 Кәсіби кеңес: Ordering tip: if replacing an existing gearbox, measure the input/output shaft diameters and mounting bolt pattern as a minimum. With these three dimensions, our team can match the correct unit from our catalogue or design a custom solution.
🛠 Installation Procedure for Your Large Square Baler Gearbox
This guide covers the complete process of replacing the gearbox on your large square baler. Each step includes specific details for hay baling equipment — follow them in sequence for best results.
Step 1 — Connect Output to plunger crank drive
Connect the output coupling to the plunger crank drive drive on your large square baler. Ensure the shaft engagement depth meets the minimum specified in the manual. Tighten all retaining hardware to the correct torque value. After connection, rotate the output by hand to verify smooth, unrestricted movement.
Step 2 — Position & Secure New Gearbox
With an assistant or hoist, position the new gearbox onto the large square baler’s mounting flange. Align the locating dowels or pilot bore first, then insert the mounting bolts. Tighten in stages: first to 50% torque in a star pattern, then to 75%, then to full specification. Check for flush seating around the entire perimeter.
Step 3 — Post-Installation Checks (10-Hour Service)
Perform a 10-hour service: re-check mounting bolt torque, inspect for leaks, verify oil level, and confirm the PTO safety guard is in place. Clean any accumulated debris from the gearbox housing to maintain effective heat dissipation. Log the installation details in your equipment maintenance records.
Step 4 — Prepare the Mounting Surface
Scrape any old gasket material or RTV sealant from the large square baler’s gearbox mounting face. Use a flat file to remove any burrs around bolt holes. Verify all mounting holes align correctly by test-fitting the new gearbox without bolts. Check for flatness — a feeler gauge should show less than 0.1mm across the mounting surface.
Step 5 — Remove Old Gearbox
Detach the driveline yoke from the gearbox input. If the gearbox also has an output coupling to the plunger crank drive, disconnect that as well. Support the gearbox from below with a hydraulic jack. Remove the mounting fasteners progressively, keeping at least two bolts finger-tight until you are ready to slide the unit out.
Step 6 — Safety Preparation
Position the large square baler on a flat, stable surface and immobilize the tractor. Disengage the PTO and shut down the engine. Remove the ignition key to prevent accidental start-up. Wait at least 15 minutes for hot surfaces to cool. Gather your tool kit: socket set, torque wrench, clean containers for oil, and the installation manual.
Step 7 — Connect PTO Driveline
Slide the PTO driveline yoke over the gearbox input spline. Ensure full engagement — the yoke should slide past the retaining groove and click into place. Test the engagement by pulling firmly on the yoke; it should not detach. Verify that the driveline length allows adequate telescoping stroke throughout the full range of implement movement.
⚠ Маңызды: For safety, never work under unsupported equipment. Use proper lifting devices when handling the gearbox unit.
⚠ Fault Diagnosis Guide — Large Square Baler Gearbox
Even the best-engineered gearbox may encounter operational issues over its service life. This guide covers the most common symptoms reported with large square baler gearboxes and provides actionable field solutions.
⚠ Кіріс айналған кезде шығыс білігі айналуын тоқтатады
Likely cause: Internal shaft fracture
What to do: If the gearbox has a shear pin or slip clutch, inspect it for activation. A tripped overload device is a protective event, not a failure — replace the pin and investigate what caused the overload. If the overload device is intact but no output is produced, internal gear or shaft failure has occurred.
⚠ Беріліс қорабы PTO қосылған кезде металл тәрізді сықырлаған дыбыс шығарады
Likely cause: Overload protection mechanism is loose
What to do: Check the PTO driveline length — a driveline that is slightly too long will ‘bottom out’ on engagement, creating a sharp metallic sound. Verify all external hardware (mounting bolts, guard brackets, driveline clamps) is secure. If the sound comes from inside the gearbox under load, internal inspection is recommended.
⚠ Gearbox Running Excessively Hot
Likely cause: Incorrect oil grade (too thick or too thin for conditions)
What to do: Measure housing temperature (normal operating range: 40-80°C depending on ambient temperature). If consistently above 90°C, verify oil volume, clean the housing, and check that the gear ratio produces the correct output speed. An incorrect ratio forces the gearbox to work harder, generating excess heat.
⚠ Білік тығыздағыштарынан майдың ағуы
Likely cause: Scored or corroded shaft surface under seal lip
What to do: Inspect the breather cap — a blocked breather pressurizes the housing and forces oil past seals. Replace the breather and clean any debris. If leaking continues, replace the affected seal. Check the shaft surface under the seal for grooves or corrosion that may be cutting the seal lip.
⚠ Difficulty Connecting PTO Driveline to Gearbox
Likely cause: Incorrect spline count (540 vs 1000 RPM mismatch)
What to do: Apply penetrating oil to the input splines and allow it to work for 5 minutes. Rotate the PTO driveline slightly while applying light pressure — the splines need to index before engaging. If the driveline yoke is worn, replace it before installation to prevent premature input bearing failure.
For persistent or complex issues, our engineers provide remote diagnostic support via phone and email. We can also supply rebuild kits for in-workshop repairs. Reach our support team here.
📍 Real-World Performance — Large Square Baler Gearbox Across Australia
Our agricultural gearboxes are field-proven across every Australian state and territory. Below are documented case studies from recent Large Square Baler gearbox installations.
Paul Hutchinson — Toowoomba, QLD
Операция: dryland farming operation | Өлшемі: 8000 acres | Қолданылуы: Large Square Baler gearbox for hay baling
Сатып алу себебі: Upgrade from budget aftermarket unit that lasted less than one season
“Installed as a replacement for a gearbox that catastrophically failed mid-season. The MowerGearbox unit was delivered within 6 days and fitted perfectly. We finished the season without further issues. Very impressed.”
📍 Case #3: Wangaratta, VIC
| Тұтынушы: | James Mitchell — irrigated cropping enterprise |
| Орналасқан жері: | Wangaratta, VIC |
| Ферма көлемі: | 5000 acres |
| Қолдану: | Large Square Baler gearbox for large square baler — hay baling |
| Сатып алу себебі: | New equipment build — specifying aftermarket gearbox as OEM improvement |
“The technical support was exceptional. They asked detailed questions about our setup, recommended the correct model and ratio, and followed up after installation to confirm everything was operating correctly. That level of service is rare.”
— James Mitchell, Wangaratta, VIC
Tom Gallagher — Melbourne, VIC
Операция: irrigated cropping enterprise | Өлшемі: 1200 акр | Қолданылуы: Large Square Baler gearbox for hay baling
Сатып алу себебі: Fleet standardisation — transitioning all large square baler equipment to a single gearbox supplier
“Our large square baler contractor business depends on zero downtime during the season. These gearboxes have given us that reliability. In 3 years of use across 6 machines, we have had exactly zero gearbox-related breakdowns.”
💬 Common Questions About Our Large Square Baler Gearbox
Q1: What payment and ordering options do you offer?
We accept bank transfer, credit card, and purchase orders from established accounts. For large orders, we offer 30-day payment terms subject to credit approval. Orders can be placed through our website, by email, or by phone. Pro-forma invoices are available for pre-payment arrangements.
Q2: How does your gearbox compare to the original OEM unit?
Our gearbox matches or exceeds OEM specifications across all measurable parameters. Key improvements include upgraded bearing classes, superior seal materials, enhanced heat dissipation, and the option for custom gear ratios that OEM catalogues do not offer. The result is a drop-in replacement that typically outlasts the original.
Q3: How is the gearbox packaged for shipping?
Each gearbox is drained of shipping oil, wrapped in VCI (Vapor Corrosion Inhibitor) film, and crated in a sturdy plywood box rated for international freight. This packaging protects against moisture, impact, and corrosion during transit — even for shipments to remote Australian properties via road freight.
Q4: What is the expected lifespan under continuous hay baling operation?
Our Large Square Baler gearbox is rated for 3,000 to 5,000+ operating hours with proper maintenance. Many customers in intensive Australian operations report achieving 5,000+ hours before requiring any internal service. Key factors affecting lifespan include oil change frequency, operating load, and environmental conditions.
Q5: Do you provide technical support after purchase?
Yes — every purchase includes access to our engineering support team for installation guidance, troubleshooting, maintenance advice, and parts ordering. Support is available via phone, email, and our online contact form. There is no charge for technical support during or after the warranty period.
Q6: Is the gearbox suitable for use in organic-certified farming operations?
Our gearboxes are mechanical components and contain no substances that would affect organic certification. However, the choice of lubricant should be considered — we can recommend food-grade and biodegradable gear oils that are compatible with organic farming standards in Australia and internationally.
Q7: Can the gearbox be serviced or rebuilt in the field?
Routine service (oil changes, seal replacement, bearing inspection) can be performed on-site with standard tools. For major rebuilds, we supply complete overhaul kits containing all bearings, seals, and gaskets. Detailed service manuals and video guides are available for download from our support portal.
Q8: Will this gearbox fit older-model large square baler equipment?
We maintain compatibility databases covering large square baler models from the past 25+ years. Most older models can be directly fitted with our current gearbox range. For discontinued or rare models, send us the mounting dimensions and shaft specifications, and we will confirm fitment or design a custom adapter.
Q9: Do you deliver to remote farming areas in Australia?
Yes — we ship to every postcode in Australia, including remote and regional areas. We use experienced agricultural freight carriers who understand the urgency of seasonal equipment needs. Express shipping is available for emergency breakdown situations, and we maintain stock for immediate dispatch of popular models.
Q10: What documentation ships with the gearbox?
Every gearbox ships with: installation manual with torque specifications, lubrication and maintenance schedule, parts diagram with individual part numbers, warranty registration card, and a quality inspection certificate with the unit’s serial number and test results.
⚡ Pair With These: Large Square Baler Power Transmission Accessories
A complete power transmission system delivers better results than any single component. Consider these additions to your Large Square Baler setup.
PTO Driveline ComponentsComplete PTO driveline kits with dynamically balanced shafts, heavy-duty U-joints, and torque-rated safety clutch. Sized to match our Large Square Baler gearbox input. |
Agricultural Gearbox CollectionBrowse our full range of agricultural gearboxes — from mower drives to harvester transmissions. Every unit built to the same premium standards as our Large Square Baler gearbox. |
⚖ Safety Standards for Large Square Baler Equipment in Australia
Compliance with Australian safety standards protects your workers and your business. The following standards and regulations apply to Large Square Baler agricultural gearbox installations:
Applicable Standards
- AS/NZS 3788 — Pressure Equipment: Gearbox housings safely contain internal operating pressures in compliance with applicable standards.
- ISO 6336 — Gear Load Capacity: All gears rated and verified per international standards for tooth root fatigue and surface durability.
State-Specific Requirements
- Tasmania — WHS Regulations 2012: mandates operator training for all PTO-driven large square baler equipment.
- ACT — WHS Regulation 2011: mirrors national standards for agricultural machinery including large square baler equipment.
- Northern Territory — WHS (National Uniform Legislation) Regulations 2011: applies federal standards to hay baling operations territory-wide.
Regional Coverage & Delivery Network
We deliver Large Square Baler agricultural gearboxes to every state and territory in Australia. Our logistics network covers major farming regions including the Wheatbelt, the Ord River district, and the Great Southern, the Wimmera, the Mallee, and Goulburn Valley, and the Riverina, the Murrumbidgee Irrigation Area, and the Liverpool Plains. Whether you operate in a metropolitan fringe area or a remote pastoral station, we ship directly to your property with full tracking and delivery confirmation.
📧 Large Square Baler Gearbox Quote — Fast Turnaround Guaranteed
Beyond Standard — Custom Solutions Welcome
Standard specifications don’t always fit. Our engineering team designs and manufactures custom gearboxes to your drawings, samples, or specifications. From modified OEM replacements to completely new designs for specialised large square baler equipment — we handle it all.
Get a personalised quotation for your Large Square Baler gearbox
Your trusted partner for agricultural gearbox solutions — standard and custom — across Australia and worldwide.
